Case study: Map a list of GenBank identifiers with a list of Swiss-Prot codes

View as Movie       BeanShell script along with data (zipped)


id mapping, automatic sequence retrieval, GenBank, Swiss-Prot [IDs vs. IDs using BLAST or FASTA34]

Initial situation:

You have a list of GenBank identifiers and a list of Swiss-Prot accessions. Both list represent the same protein set. Now you want to find the corresponding identifiers.


We use a text file with GenBank IDs and one with Swiss-Prot codes.

File Content
genbank_ids.txt Text file with GenBank identifiers
sprot_ids.txt Text file with Swiss-Prot codes


Step 1: Data import

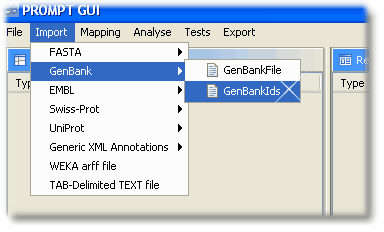

The file with the GenBank identifier can be imported by choosing “Import -> GenBank -> GenBankIds” from PROMPT's menu line.

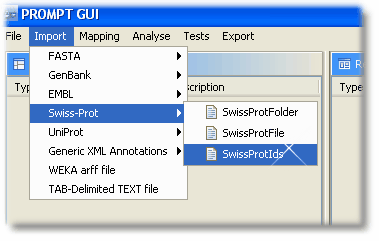

The file with the Swiss-Prot codes can be loaded by choosing "Import -> Swiss-Prot -> SwissProtIds"

Please note that it may takes a few seconds until the sequences of all identifiers have been downloaded.

Step 2: Mapping & Results

Select both entries n the input view and choose from the menu:

"Mapping -> BLAST one seq. set against another"

or alternatively you can use the FASTA34 algorithm with the menu command

"Mapping -> FASTA one seq. set against another"

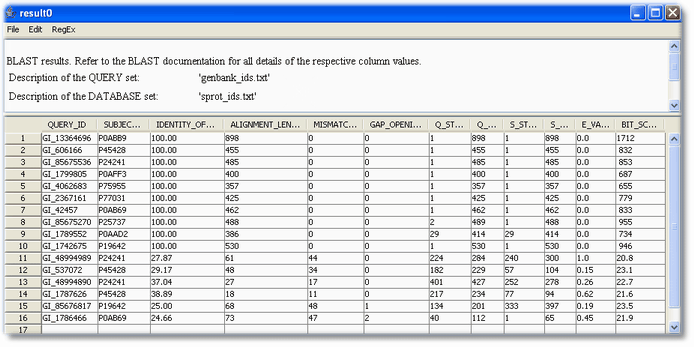

Switch to the message tab to see processing messages. After all sequences have been processed, two new results will show up in the result section.

The result contains the mapped sequences along with some other alignment properties.
