Case study: Protein abundance in yeast

View as Movie       BeanShell script along with data (zipped)


External data usage, Generic XML, Data Import/Export, Numeric correlation & comparison

Initial situation:

We have measured protein abundance data in yeast and want to analyse if abundance correlates with protein weight, mRNA expression or other numeric factors.



We are using publicly available yeast protein abundance data (Ghaemmaghami S. et al. 2003 Nature) and steady-state mRNA expression levels of yeast proteins (Holstege, et al. 1998, Cell) (links). We formatted the original data as tab-delimited text files which PROMPT can import immediately. The format of PROMPT's tab-delimited files or PROMPT's generic XML format is described along with the descriptions of PROMPT's import methods Import-TXT and Import-XML.

Data file


mRNAexpr.txt Steady-state mRNA expression levels
abd_all.txt Protein abundance for all yeast proteins used in this study. The tab delimited text file contains the protein abundance in its original form and logarithmized to the base of 2.
abd_essential.txt Protein abundance only for essential proteins in yeast
yeast.fasta S.cerevisae protein sequences as multiple fasta file


Step 1: Data import

Simply import all datasets to PROMPT by using the tab-delimited text import feature. Choose “Import -> TAB-Delimited TEXT file” from PROMPT's menu and select the files.

Step 2: Analysis & Results

Let's first of all analyse the correlation between mRNA expression levels and protein abundance:

Select the mRNAexpr input and the abd_all input and choose

Analyse -> Generic Annotations -> Compare annotation between 2 sets -> Numeric feature correlation

As the abd_all.txt  input contains the original abundance values as well as the logarithmized abundance values you are asked which data you want to use. Select the property abundance that represents the non-logarithmized original data.

You'll get 2 results of a numeric correlation analysis. The first result named CorNumeric:statvalues contain the statistical values and results of the correlation test. The second result named CorNumeric:datapairs contains the datapairs and can be used to create a scatterplot. To view such a plot select the datapairs result and use the right mouse click to open a context-sensitive popup menu. In the popup menu select the CorrelationNumeric plot type. This is one of the static R plots that allow one to use logarithmic axis scales that are appropriate here.

Tip: Click at the figure to enlarge.

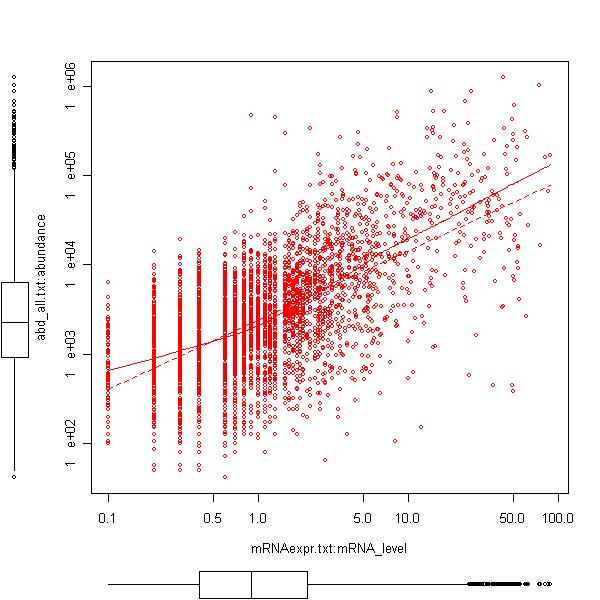

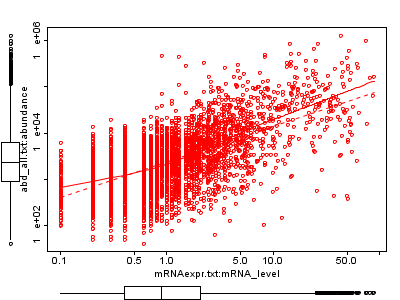

Figure 1. Relationship between steady-state mRNA and protein levels. Abundance of each protein is plotted against its mRNA level detemined by microarray analysis. The solid lines shows a local polynomial loess fitting curve, the dotted line is a linear regression. The axis are scaled logarithmically. The Pearson correlation coefficient is 0.4353349. Compare this Figure with Figure 4c in Ghaemmaghami S. et al. (2003) Nature.

Note: A scatter plot visualisation with boxplots along the axes needs the additional R package car. Installation instructions can be found here.

Our second question is are essential proteins more abundant? Let's see how the molecule copy number differ between essential and all proteins.

Select the inputs abd_all.txt and abd_essential.txt. To run a numeric distribution comparison choose from PROMPT's menu

Analyse -> Generic Annotations -> Compare annotation between 2 sets -> Numeric feature comparison

You are asked which numeric properties you want to compare. As both datasets contain logarithmized abundance values already choose "abundance_lg2". In the following binning wizard choose the following options:

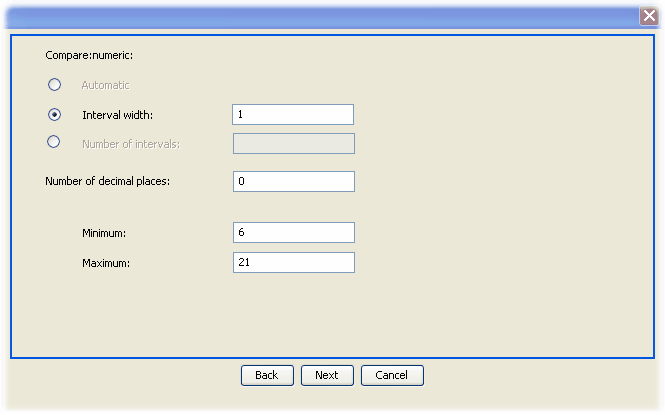

Figure 2a. Binning wizard's first page. The chosen options creates intervals for a histogram that have a width of 1, no decimal places and range from 6 to 21.

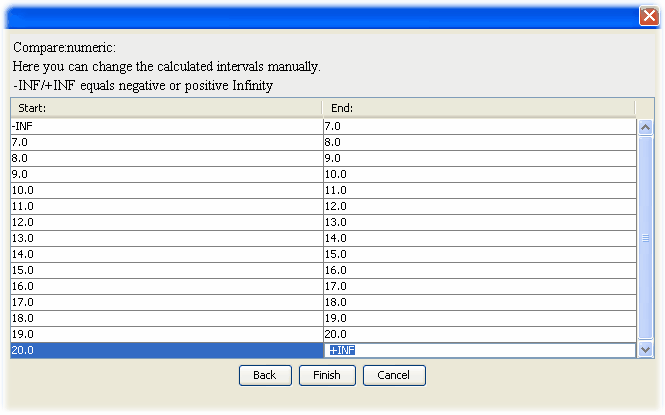

Figure 2b. Binning wizard's second page. Here the proposed binning can be previewed and altered. If the proposed intervals do not fit your needs the Back button allows one to return to the first page of the binning wizard. Note that we used the special keywords -INF and +INF in the first and last interval to specify that all values less than 7 or higher than 20 fall into these bins.

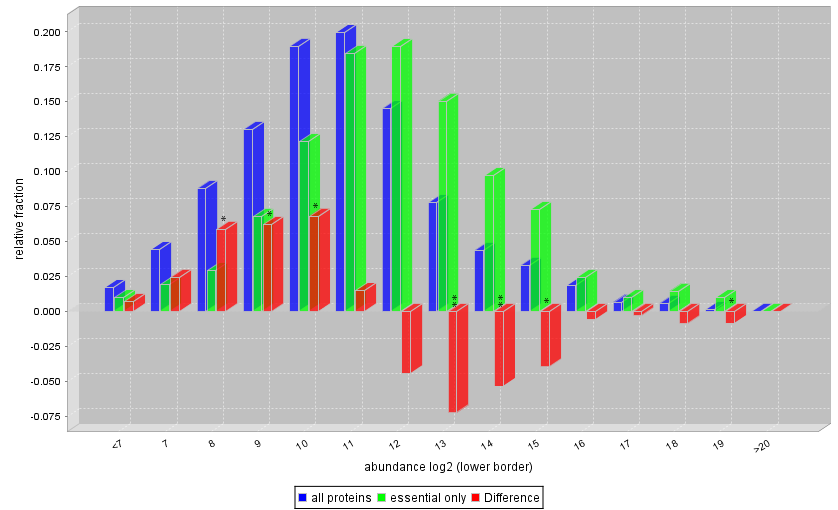

Figure 3. Abundance distribution of the yeast protoeme. Normalized abundance distribution of all observed proteins (blue) and essential proteins only (green) and the relative difference (red). The abundance distribution between all proteins and essential proteins in yeast is significantly different with a KS-p-value of 6.2 E-12 and a MW-p-value of 1.7 E-13. Additionally, the stars shown above the red bars indicate the  difference within the corresponding  abundance ranges is significant  with p-values *<0.05, ** <0.01 and *** <0.001.
